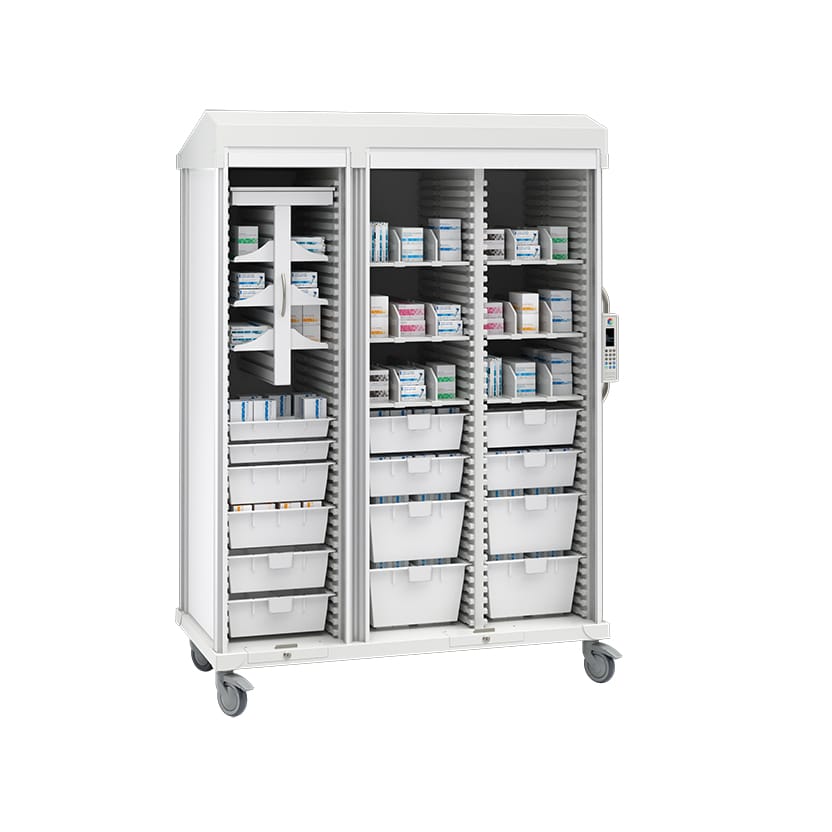

Roam 3 Vascular Cart with Roll-Top Doors

Roam 3 Vascular Cart with Roll-Top Doors, Sutures Out

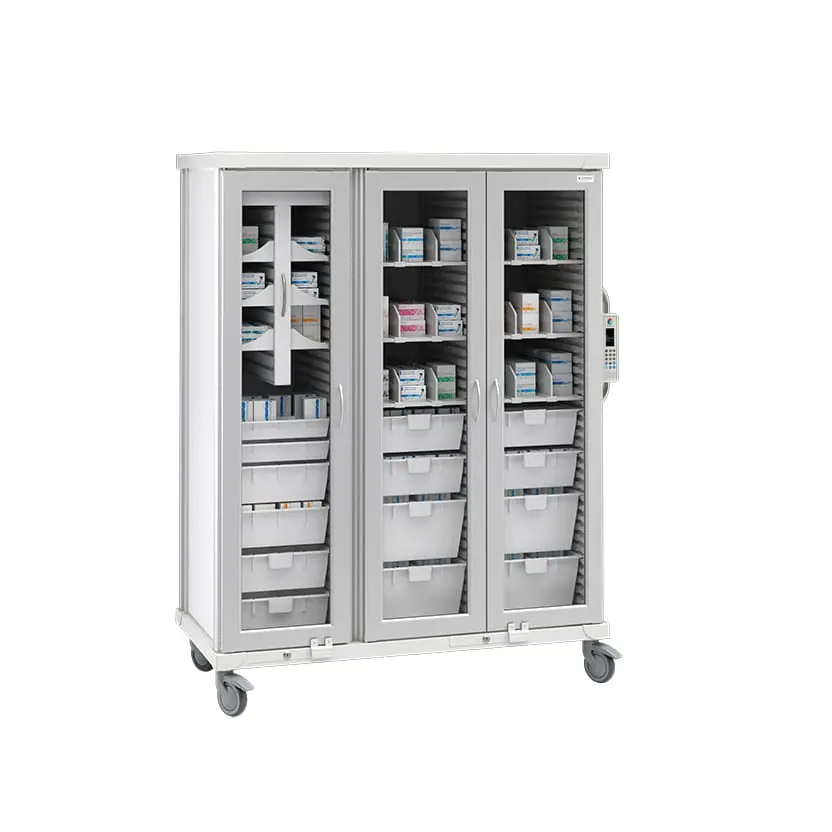

Roam 3 Supply Cart, Glass Doors, Two Center Columns

Roam 3 Supply Cart, Roll-Top Doors, Two Center Columns

Roam 3 Vascular Cart

Door choices include 2 counterbalanced roll-top doors or 3 lockable tempered glass doors. Preconfigured cart includes 6 single-compartment shelves, 12 shelf dividers, 2 3″ trays with dividers, 8 6″ trays with dividers, 4 9″ trays with dividers, 1 pull-out suture module, and label holders. The cart has a lightweight aluminum case, easy-grip vertical aluminum handles, and lockable 5” medical-grade casters.

Subtotal
Options
Total

Dimensions (nominal)

Exterior:

58.75”w x 28.75”d x 75.25”h (glass doors)

58.75”w x 28.75”d x 81”h (roll-top doors)

Interior (glass and roll-top doors):

14.5”w x 23.75”d x 64.25”h (single compartment)

31.75”w x 23.75”d x 64.25”h (double compartment)

Weight

293 lbs (glass doors

288 lbs (roll-top doors)

Interior Configuration

Cart with roll-top or glass doors: 126 FlexCells, 42 per compartment

Materials and Finishes

Base and top structure: Powder-coated steel
Corner extrusions: Clear anodized aluminum
Roll-top track extrusion: Clear anodized aluminum
Corner bumpers and corner trim: Thermoplastic polymer (ABS plastic)
FlexCell panels: Thermoplastic polymer (ABS plastic)
Hinges: Steel
Door pulls: Dull chrome-plated steel
Push handles: Clear anodized aluminum
Roll-top door slats and handles: Polypropylene
Glass doors: Clear anodized aluminum and tempered glass
Casters: Nylon and steel

Cart has 3 interior compartments; right or left compartment divider can be removed to fit full-width shelves
A variety of accessories are available; see Accessories
Optional keyed or InterConnect lock available
Optional 5” slope top is available on cart with glass doors
Cart comes standard in soft white finish; optional colors available

Glass doors: SR3GVS
Roll-top doors: SR3RVS

CAD and Revit files are available only to registered users. Please create an account to download files.
